4KW Solar Charge Controller
  • 4KW Solar Charge Controller4KW Solar Charge Controller

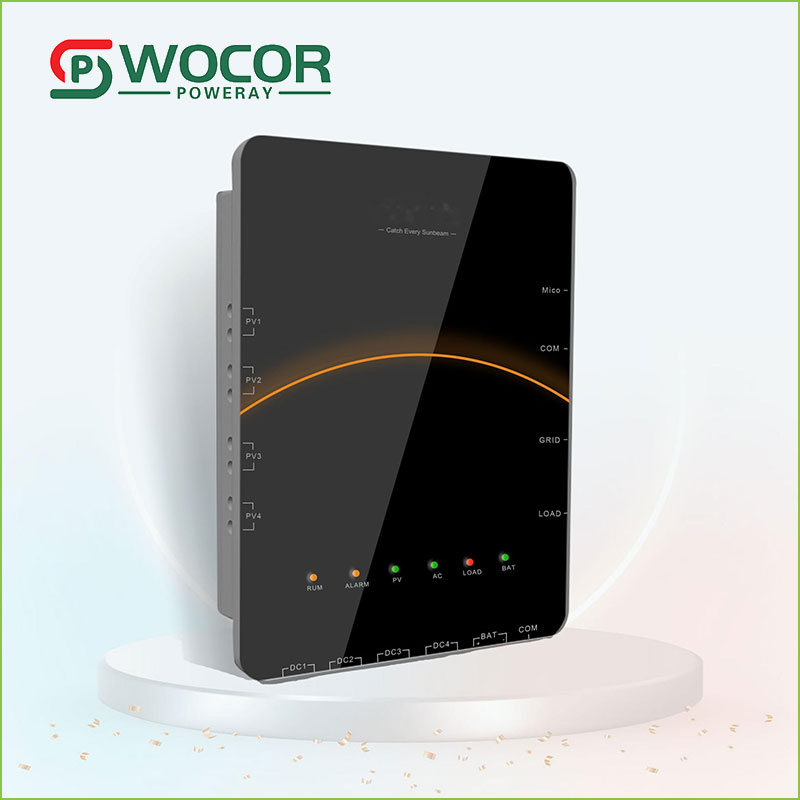

4KW Solar Charge Controller

To Protect the climate, it is crucial to reduce greenhouse gas emissions. Solar energy storage system and electric vehicles play an important role in reducing those emissions. Wocor Poweray provides a full solution that combiner the rooftop solar, energy storage system, and EV charging station. Optimize the load on the grid, reduce the cost of grid upgrades, build smart and renewable home energy management systems.The WoCor Poweray 4KW Solar Charge Controller’s Sub-1G wireless solution enables the stable communication when installed for commercial.

Send Inquiry    PDF DownLoad

Product Description

WoCor Poweray 4KW Solar Charge Controller has an efficient charging system and can handle high power input reach to 4KW, this controller equipped with industrial-grade (MPPT+AC) to control the charge and discharge process. WoCor Poweray 4KW Solar Charge Controller has perfect and liable battery charge and discharge period management. WoCor Poweray 4KW Solar Charge Controller works with our Tiger series microinverter will magically create a residential solar storage system that will support battery mode operation without mains power.


Further more the adaptive function of the wide voltage battery enables customers to choose vary type batteries: wide voltage (12V/24V/36V/48V),different type batteries (Lead-acid batteries, lithium batteries or others). The shell of WoCor Poweray 4KW Solar Charge Controller is designed with high-performance aluminum alloy to die-casting sealing,so that it can keep running in harsh natural environment.


Product information

Model

Tribune-EMS 4KW

MPPT Solar Charger

Number of MPPT Trackers

4

PV Operating Voltage

20-60V

MPPT Operating Voltage Range

25-60V

Max. PV open circuit voltage

60Vdc

Max. PV array Power

4 x 1 tracker 1200W(2pcs 600W in parallel)

Max. Charging Current

90A

Max. DC load Current

4 x 30A@45V

Self Consumption

2W

MPPT Tracking Efficiency

99.9%

Conversion Efficiency

98%

Protection

overload, reverse connection, short circuit, high voltage ,high temperature protection

AC Charger(Optional)

Input Voltage

110V -260V

Charge Current

10A@48V

Charge Current Adjustable

0-10A

Customized Charge Time

Set up the charge time by APP

Battery

Battery Type

Sealed , AGM, Gel, Flooded, Lithium , Lithium carbonate, User-defined

Battery Voltage

Standard 48V or Automatic detection

Battery Voltage Range

10V-60V

Customized Discharge Time

Set up the discharge time by APP

Communication

Communication Port

RS485

Energy Management

Input Power form Micro inverter

4KW

Qty of Microinverter

2pcs Tiger-2KW; 4pcs Tiger-1.2KW; 8pcs Tiger-600W

AC Loading (Back-up)

4KW 230Vac@50Hz

Loading Peak Power (Back-up)

12KW (with 2pcs Tiger-2KW)

AC Output (on-grid)

4KW 230Vac@50Hz

Output Power Factor (Adjustable)

>0.99 Default, 0.8 Leading...0.8 Lagging...

UPS Switch Time

<10mS

Level of Harmonics Distortion

THD <3%

Protection

overload, short circuit, battery low voltage, battery reverse polarity, Island protection

Mechanical

Net weight

5KG

Gross weight

6KG

Dimensions

230*270*90 MM

Packing dimension

350*300*105 MM

Cooling

Natural Convection-No Fans

Enclosure

IP65

Environment

Ambient Temperature

-25~65℃ ( Derating from 45℃)

Storage Temperature

-40℃~+85℃

Humidity

100% non-condensing

Warranty

5 Years

Certification

Safety

CE and UL


Product Feature of the WoCor Poweray Tribune-EMS 4KW Controller

*4 Independently trackers, maximize each solar panel output
*Automatic battery voltage detection in 12V/24V/46V/48V
*Suitable for different battery types MPPT tracking efficiency >99.9%, Peak conversion efficiency >99%
*With UPS function, keep your home devices running properly 6 LED lights clearly show all work status
*Reverse polarity protection of solar panel and battery
*Overcharge and overload protection
*Flexibly monitor your solar harvest via APP
