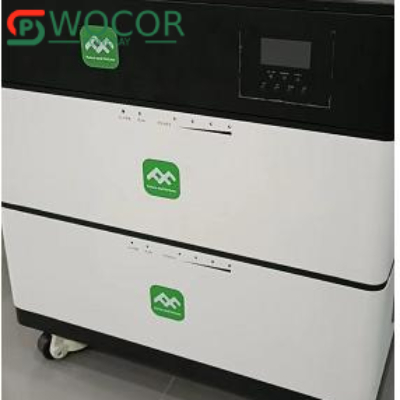

5KW Home Power Storage
  • 5KW Home Power Storage5KW Home Power Storage

5KW Home Power Storage

All WOCOR Poweray products include CDK-5kWh 5KW Home Power Storage have been certified to meet regulatory, safety, and environmental standards that meet or exceed market demand. In addition, we are committed to strict quality control, customer service, and reliability that earn the trust of our customers. A home battery and backup system is a great way to provide clean, eco-friendly energy to your entire home this holiday season and throughout the year. And with modular systems, you can add storage batteries or solar panels as needed to keep up with changing energy needs.

Send Inquiry    PDF DownLoad

Product Description

If power outages are regular events where you live, you might want to consider installing a set of home power storage to supply you with electricity when you are off the grid like CDK-5kWh 5KW Home Power Storage. The CDK-5kWh 5KW Home Power Storage will give you an energy capacity of 5kWh and has a power rating of 5120W .The CDK-5kWh 5KW Home Power Storage adopt high-performance BMS battery management system to make your energy switch to backup battery power as simple as possible. CDK-5kWh 5KW Home Power Storage has high energy density and conversion efficiency.



Product information

Model name

CDK-5kWh

Item

General Parameters

Remark

Battery type

Lithium iron phosphate



Output wave

Pure sine wave



Rated capacity

100.0Ah

0.2C after standard charging 0.2 C5 standard discharging

Minimum capacity

98.0Ah

Nominal voltage

5102V



Expected life

80% of initial capacity

Fistly 0.2C5 constant current charges to 58.4V, then constant voltage charges until current is less than 0.05C

Set aside:30min

Discharging :0.2 C5 to 40.0V

Temperature:20±5℃

Cycle time 2000 times 100%DOD

End-off discharging

voltage

≥32V



40.0V (recommendation)



End-off charging

voltage

≤62.4 V



58.4V (recommendation)



Cells connected

methods

16S1P





Casing material

Metal casing







Standard charging



0.2C constant current charges to

58.4V and constant voltage to

58.4V, charging until the

charging current≤0.05C



Charging time:about 6 hours



Standard

discharging

Continuous current:0.2C



End-off voltage:40.0V



Maximum charging

current

100A



Maximum continuous

discharging current

100A



Peak current

200A



Working temperature

range

Charging: 0~45℃

Recommendation 23±5℃

Discharging: -10~60℃

Storage temperature

range

Less than one year: 0~25℃

Humidity range at shipping

state 23 ± 5°

Less than three months:-10~35℃

Weight

About 45Kg





Maximum dimension



Height:120.4cm



Width: 80.6cm



Length:40cm



Communication

RS485/CAN

Support multiple inverter

Machine in parallel

Support 16 groups n parallel



Protection function

1.Over charging protection 2.over discharging protection

3.temperature protection 4.over current protection 5.short

Authentication

certificate

CE/FCC/ROSH/PSE/UN3.3/MSDS/Dangerous packing certificate





Product Feature And Application of the CDK-5kWh

*Working temperature: 0°C-60°C

* High cycle times and long life

* High energy density and conversion efficiency

* Adopt high-performance BMS battery management system

* There is sufficient insulation safety protection inside the battery

* Recognized green energy, no pollution in the whole production and use process

* Specify the specification level according to the national standard or use higher sensitivity standard to ensure the quality of the battery
