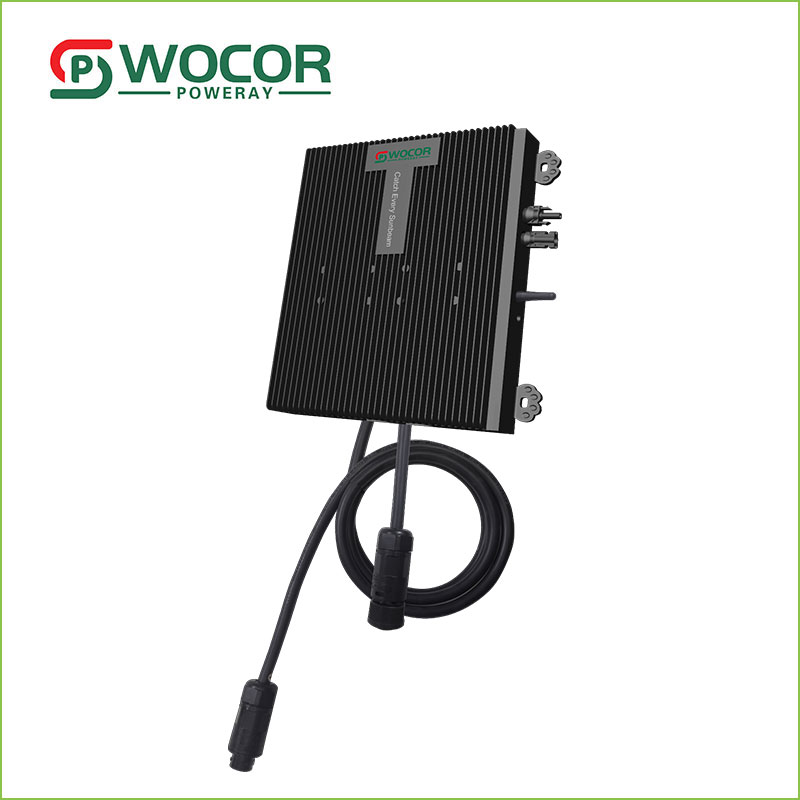

1.2KW 2MPPT Single-Phase Microinverter
  • 1.2KW 2MPPT Single-Phase Microinverter1.2KW 2MPPT Single-Phase Microinverter

1.2KW 2MPPT Single-Phase Microinverter

Shifting environmental factors constantly challenge the efficiency of solar arrays; dust, debris and shade can drastically lower power output. With a conventional “string” inverter system, the least-performing module determines the productivity of the entire array – so the shadow of a single leaf will compromise the whole system. WoCor Poweray Tiger series 1.2KW 2MPPT Single-Phase Microinverter give you more power, independently optimizing the output from each solar module.

Send Inquiry    PDF DownLoad

Product Description

If one module is shaded, all the other modules in your array will still operate at full power. Built into each Tiger series 1.2KW 2MPPT Single-Phase Microinverter is a function called Maximum Power Point Tracking. Working at hundreds of times per second, the Tiger series 1.2KW 2MPPT Single-Phase Microinverter continually finds the greatest possible module power, greatly increasing overall system performance.


The Tiger series 1.2KW 2MPPT Single-Phase Microinverter is the industry’s first highest power rating microinverter that produces electrical energy from two photovoltaic (“PV”) panels of 500W+ each, without any power clipping under all operating conditions. our Tiger series 1.2KW 2MPPT Single-Phase Microinverter have two individual DC input channels to enable independent peak power tracking for up to two PV modules. This allows significant reduction in installation time and cable costs.


Product information

Model

Tiger-1.2KW

PV Input Data

Number of MPPT Trackers

2

Suggested Modules Range

500W-600W

Max. Input DC Voltage

60V

MPPT Operating Voltage Range

25-60V

Startup Voltage

20V

Overvoltage Class DC Port

II

DC Port Backfeed Current

0 A

Max. Input Current

2 × 15 A

PV Array Requirement

2x1 Ungrouned array; No Additional PV side protection required

AC Output Data

Peak Output Power

3600W

Max. Continuous Output Power

1200W

Max. Continuous Output Current

5.45A

Nominal output voltage

220/230Vac(187-278Vac)

Nominal Frequency/Range

50HZ/60HZ

Extended Frequency/Range

45~55Hz / 55~65Hz

AC Short Circuit Current

7.5A

Max. Units Per Branch Circuit

5

Overvoltage Class AC Port

III

Power Factor(Adjustable)

>0.99 Default, 0.8 Leading...0.8 Lagging...

Level of Harmonics Distortion

<3%

AC Protection Required

AC output side need 63A circuit breaker(on grid modle)

Efficiency

CEC Weighted Efficiency

95%

Peak Inverter Efficiency

95.50%

Static MPPT Efficiency

99%

Night Time Power Consumption

<50mW

Mechanical Data

Operating Ambient Temperature Range

-40 °C to +65 °C(-40 °F to +149 ° F )

Storage Ambinet Temperature

-40 °C to +85 °C(-40 °F to +185° F )

Relative Humidity Range

4% to 100% (condensing)

Connector type: DC

MC4

Dimensions(W*H*D)

218*245*42mm

Weight

3 KG

Cooling

Natural Convection-No Fans

Approved for Wet Locations

Yes

Enclosure Rating

IP67

AC Cable Length(Customizable)

Standard 2.5m(customized available)

Features

Communication

WIFI

Monitoring

Support remote web page monitoring and mobile APP by WoCor Poweray Cloud

Compliance

Inmetro, UL1741, VDE4105, VDE0126, CE,EN50549...

Product Feature And Application of the 1.2KW 2MPPT Single-Phase Microinverter

Solar panels output voltage <60VDC, decrease the risk of an electrical fire.
One panel match one MPPT, increase 5-15% power in production vs string inverters.
Keep each panel to work individually, avoid the impact of partial shadows on the entire solar system
Independently tracking each of solar panels production, easy to identify each solar panel performs.
Flexible application, could switch to off-grid mode to supply AC power to home devices.
Lightweight and compact with plug-and-play connectors, easy to in stall.
App monitor the running station anytime, anywhere.
