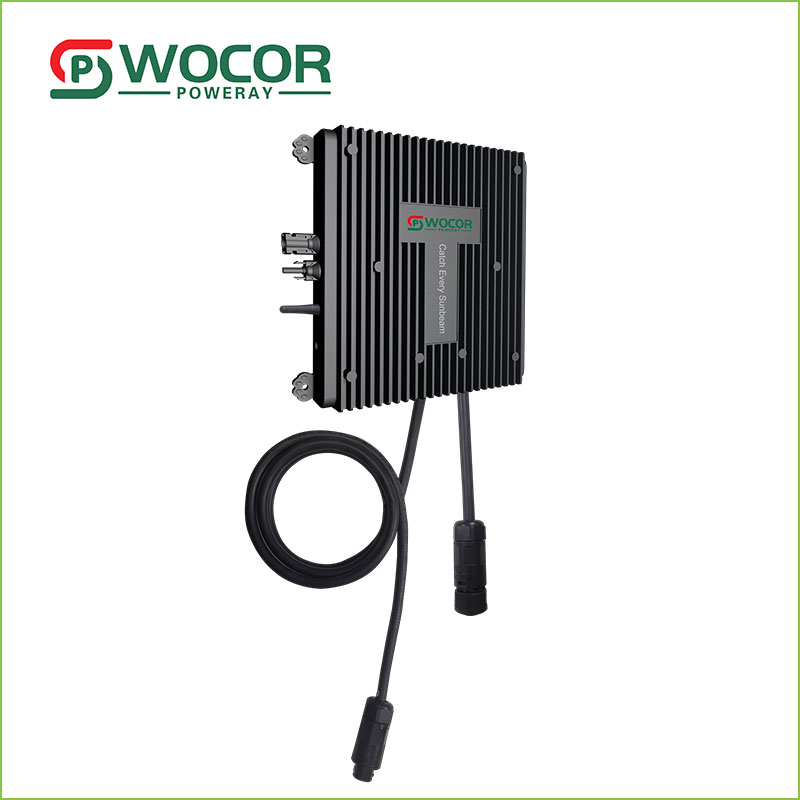

500W Single-Phase Microinverter
  • 500W Single-Phase Microinverter500W Single-Phase Microinverter

500W Single-Phase Microinverter

Our solar energy solutions are backed by years of advanced research in solar power conversion. Rely on our advanced technology to provide you with superior, reliable performance at a fraction of the cost of other systems.Based on a Per-Watt rating,the WoCor Poweray Tiger series 500W Single-Phase Microinverter has the lowest microinverter cost, the highest power output,the highest power density, and the lowest weight in the industry.

Send Inquiry    PDF DownLoad

Product Description

WoCor Poweray Tiger series 500W Single-Phase Microinverter are game changers for the solar power industry. WoCor Poweray 500W Single-Phase Microinverters are on/off grid inverter, which work with our Tribune-EMS series controller will magically create a residential solar storage system that will support battery mode operation without mains power.


Our Tiger series 500W Single-Phase Microinverter employs MPPT technology and digital control. It is designed to provide sufficient power to drive various household appliances.WoCor Poweray Tiger series 500W Single-Phase Microinverter, IP67 enclosure rating, effectively prevents rainwater from eroding the surface.


Product information

Model

Tiger-500W

PV Input Data

Number of MPPT Trackers

1

Suggested Modules Range

400W-550W

Max. Input DC Voltage

60V

MPPT Operating Voltage Range

25-60V

Startup Voltage

20V

Overvoltage Class DC Port

II

DC Port Backfeed Current

0 A

Max. Input Current

1 × 15 A

PV Array Requirement

1x1 Ungrouned array; No Additional PV side protection required

AC Output Data

Peak Output Power

1500W

Max. Continuous Output Power

 500W

Max. Continuous Output Current

2.28A

Nominal output voltage

220/230Vac(187-278Vac)

Nominal Frequency/Range

50HZ/60HZ

Extended Frequency/Range

45~55Hz / 55~65Hz

AC Short Circuit Current

3.7A

Max. Units Per Branch Circuit

10

Overvoltage Class AC Port

III

Power Factor(Adjustable)

>0.99 Default, 0.8 Leading...0.8 Lagging...

Level of Harmonics Distortion

<3%

AC Protection Required

AC output side need 63A circuit breaker(on grid modle)

Efficiency

CEC Weighted Efficiency

95%

Peak Inverter Efficiency

95.50%

Static MPPT Efficiency

99%

Night Time Power Consumption

<50mW

Mechanical Data

Operating Ambient Temperature Range

-40 °C to +65 °C(-40 °F to +149 ° F )

Storage Ambinet Temperature

-40 °C to +85 °C(-40 °F to +185° F )

Relative Humidity Range

4% to 100% (condensing)

Connector type: DC

MC4

Dimensions(W*H*D)

195*177*42mm

Weight

1 KG

Cooling

Natural Convection-No Fans

Approved for Wet Locations

Yes

Enclosure Rating

IP67

AC Cable Length(Customizable)

Standard 2.5m(customized available)

Features

Communication

WIFI

Monitoring

Support remote web page monitoring and mobile APP by WoCor Poweray Cloud

Compliance

Inmetro, UL1741, VDE4105, VDE0126, CE,EN50549...


Product Feature And Application of the 500W Single-Phase Microinverter

Solar panels output voltage <60VDC, decrease the risk of an electrical fire.
One panel match one MPPT, increase 5-15% power in production vs string inverters.
Keep each panel to work individually, avoid the impact of partial shadows on the entire solar system
Independently tracking each of solar panels production, easy to identify each solar panel performs.
Flexible application, could switch to off-grid mode to supply AC power to home devices.
Lightweight and compact with plug-and-play connectors, easy to in stall.
App monitor the running station anytime, anywhere.
