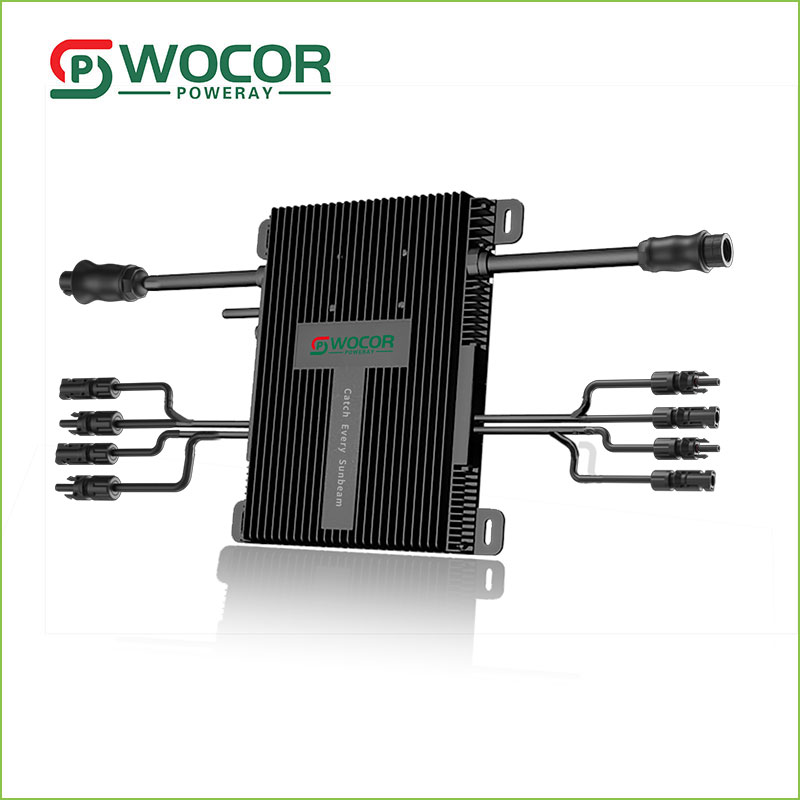

1600W Three-Phase Microinverter
As the world shifts from fossil fuels to clean energy, we are pleased to see the deployment of solar systems accelerate around the world, and our Tiger series 1600W Three-Phase Microinverter are also recognized by customers in various regions. Wocor is proud to be your reliable partner as we move together towards our goal of energy independence and a greener future. WoCor Poweray Tiger series 1600W Three-Phase Microinverter perform the same basic function as string inverters, except they are installed underneath each solar panel on your roof. Each of these microinverters is about the size of an internet router.
Send Inquiry PDF DownLoad
Product Description
The Tiger series 1600W Three-Phase Microinverter adopts the 4 in 1 Circuit Technology, which means four photovoltaic panel inputs can share one MPPT system that keeps the power output and transmission stability. When working, these four channels of Tiger series 1600W Three-Phase Microinverter will never interfere with each other while tracking the maximum power point, which efficiently makes the static MPPT efficiency up to 99.9%.
The Tiger series 1600W Three-Phase Microinverter is lightweight and easy to install, many inverters can be stacked arbitrarily to form a single-phase parallel stacking system. Almost no maintenance work is required, clean the dust on the photovoltaic panel occasionally.
Product information
|
Model |
Tiger-1.6KW |
|
|
PV Input Data |
||
|
Number of MPPT Trackers |
4 |
|
|
Suggested Modules Range |
300W-400W |
|
|
Max. Input DC Voltage |
60V |
|
|
MPPT Operating Voltage Range |
25-60V |
|
|
Startup Voltage |
20V |
|
|
Overvoltage Class DC Port |
II |
|
|
DC Port Backfeed Current |
0 A |
|
|
Max. Input Current |
4 × 15 A |
|
|
PV Array Requirement |
4x1 Ungrouned array; No Additional PV side protection required |
|
|
AC Output Data |
||
|
Peak Output Power |
4200W |
|
|
Max. Continuous Output Power |
1600W |
|
|
Max. Continuous Output Current |
6.95A |
|
|
Nominal output voltage |
220/230Vac(187-278Vac) |
|
|
Nominal Frequency/Range |
50HZ/60HZ |
|
|
Extended Frequency/Range |
45~55Hz / 55~65Hz |
|
|
AC Short Circuit Current |
14A |
|
|
Max. Units Per Branch Circuit |
3 |
|
|
Overvoltage Class AC Port |
III |
|
|
Power Factor(Adjustable) |
>0.99 Default, 0.8 Leading...0.8 Lagging... |
|
|
Level of Harmonics Distortion |
<3% |
|
|
AC Protection Required |
AC output side need 63A circuit breaker(on grid modle) |
|
|
Efficiency |
||
|
CEC Weighted Efficiency |
95% |
|
|
Peak Inverter Efficiency |
95.50% |
|
|
Static MPPT Efficiency |
99% |
|
|
Night Time Power Consumption |
＜50mW |
|
|
Mechanical Data |
||
|
Operating Ambient Temperature Range |
-40 °C to +65 °C(-40 °F to +149 ° F ) |
|
|
Storage Ambinet Temperature |
-40 °C to +85 °C(-40 °F to +185° F ) |
|
|
Relative Humidity Range |
4% to 100% (condensing) |
|
|
Connector type: DC |
MC4 |
|
|
Dimensions(W*H*D) |
270*300*45mm |
|
|
Weight |
5.2 KG |
|
|
Cooling |
Natural Convection-No Fans |
|
|
Approved for Wet Locations |
Yes |
|
|
Enclosure Rating |
IP67 |
|
|
AC Cable Length(Customizable) |
Standard 2.5m(customized available) |
|
|
Features |
||
|
Communication |
WIFI |
|
|
Monitoring |
Support remote web page monitoring and mobile APP by WoCor Poweray Cloud |
|
|
Compliance |
Inmetro, UL1741, VDE4105, VDE0126, CE,EN50549... |
|
|
*Support off-grid operation and battery mode operation without mains power |
||
Product Feature And Application of the 1600W Three-Phase Microinverter
*Solar panels output voltage <60VDC, decrease the risk of an electrical fire.*One panel match one MPPT, increase 5-15% power in production vs string inverters.
*Keep each panel to work individually, avoid the impact of partial shadows on the entire solar system
*Independently tracking each of solar panels production, easy to identify each solar panel performs.
*Flexible application, could switch to off-grid mode to supply AC power to home devices.
*Lightweight and compact with plug-and-play connectors, easy to in stall.
*App monitor the running station anytime, anywhere.
