1KW High Power Outdoor Energy Storage
  • 1KW High Power Outdoor Energy Storage1KW High Power Outdoor Energy Storage

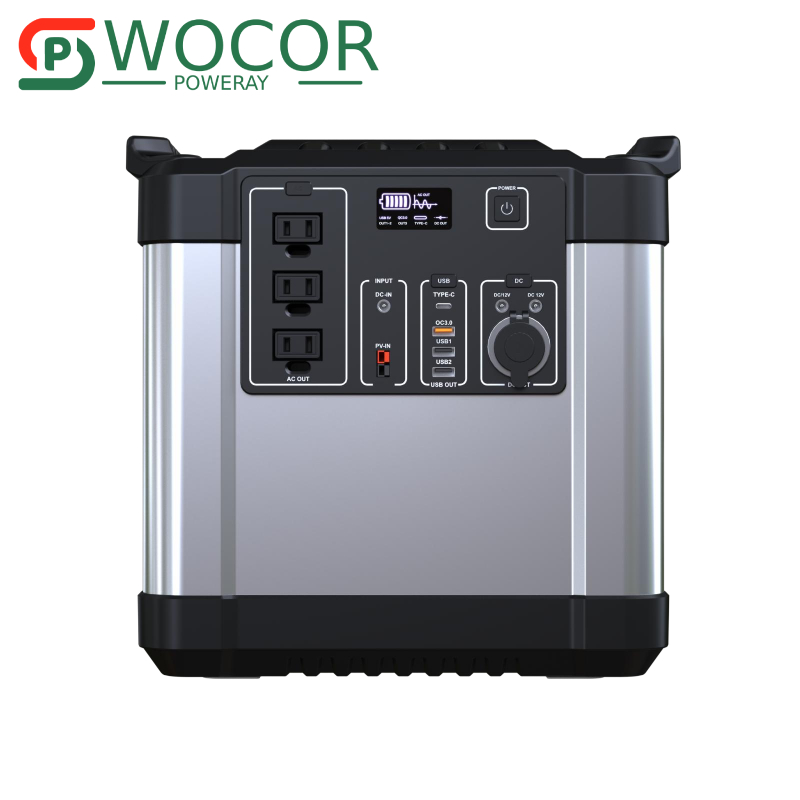

1KW High Power Outdoor Energy Storage

“ WoCor Poweray” is not only a manufacturer for China , is a new energy high-tech enterprise that continuously develops the market with "technology as the core and high-quality products and services as the purpose". All WOCOR Poweray products include CDK-1200W 1KW High Power Outdoor Energy Storage have been certified to meet regulatory, safety, and environmental standards that meet or exceed market demand. In addition, we are committed to strict quality control, customer service, and reliability that earn the trust of our customers.

Send Inquiry    PDF DownLoad

Product Description

CDK-1200W 1KW High Power Outdoor Energy Storage excellent design, built-in AC 1200W output, DC Output(X1): 9-12.6V/5A ,DC Output(X1): 12V/3A,USB Output (X2): 5V-2.4A, USB Output(X1):QC3.0 18W, Type-C Output(X1) : PD 45W. CDK-1200W 1KW High Power Outdoor Energy Storage’s built-in lithium-ion battery with a capacity of up to 120000mAh, powerful yet light in weight. With a capacity of 1200Wh, CDK-1200W 1KW High Power Outdoor Energy Storage can deliver 1200W of power (2400W surge power) using multiple output ports. Therefore, it can meet the simultaneous power supply needs of multiple mobile devices. CDK-1200W 1KW High Power Outdoor Energy Storage is the best companion and gear for outdoor activities and home powered emergency use.



Product information

Model name

CDK-1200W



LT1200

FP1200

Remark

AC Output

Output Voltage

100-120VAC、200-240VA

Output waveform

Pure sine wave

Rated Power

1200W

1200W



Power protection

2400W

2400W



Frequency Range

50Hz/60Hz±3Hz





Conversion efficiency

﹥92%

﹥92%

﹥92%

Shot circuit protection

Yes,short circuit removal, automatic release

Temperature protection

Temperature over 65℃protection

Temperature over 65℃protection



Operation method

Press the AC button

Press the AC button



DC output characteristics

Output ports

1*TYPE-C 100W, 2*USB-A 5V2.4A, 1*USB-A QC 3.0 18W

DC5521

12V/10A

12V/10A

12V/10A

Cigarette lighter output

12V/10A

12V/10A

12V/10A

Charging function

Voltage Range

Solar(18-24VDC), Adapter(19-24VDC)

Maximum charging power

200W

200W

200W

Solar charging

Built-in MPPT algorithm to improve solar charging efficiency

Charging time

Solar charging

8Hs

8Hs



Adapter Charging

5Hs

5Hs



Battery characteristics

Battery Type

18650-Lithum Battery

LiFePo Battery

Can OEM Battery

Total capacity

300000mAh

810000mAh

Can be OEM

Battery power

1110Wh

1036Wh



Protective function

1.Short circuit protection 2.Over current protection 3.Over voltage protection 4.Under voltage protection 5.Overload protection 6.Over temperature protection

Running noise

<30dB

N.W(KG)

15KG

15KG



Product Dimension

230*260*320(L)mm

230*260*320(L)mm



G.W(KG)

17.5KG

17.5KG



Package Size

410*310*360mm

410*310*360mm



HS COD

8507600090

Certification

CE/FCC/ROHS/PSE/UN3.3/MSDS/Certification For Package



Product Feature And Application of the CDK-1200W

* Built-in high power density lithium- ion battery;

* Up to 75Ah/14.8V (equivalent to 300000mAh, 3.7V) 1110Wh battery power;

* Support AC correction wave output;

* Up to 1200W AC continuous output, peak 2400W output;

* DC output, up to 12V/10A continuous output;

* The USB port supports QC18W fast charge output, suitable for smartphones, tablet

computers, etc

* The TYPEC port supports PD100W output, charging for Nintendo game consoles and

other devices.

* Protection includes: short circuit, overload, high temperature resistance, etc.
