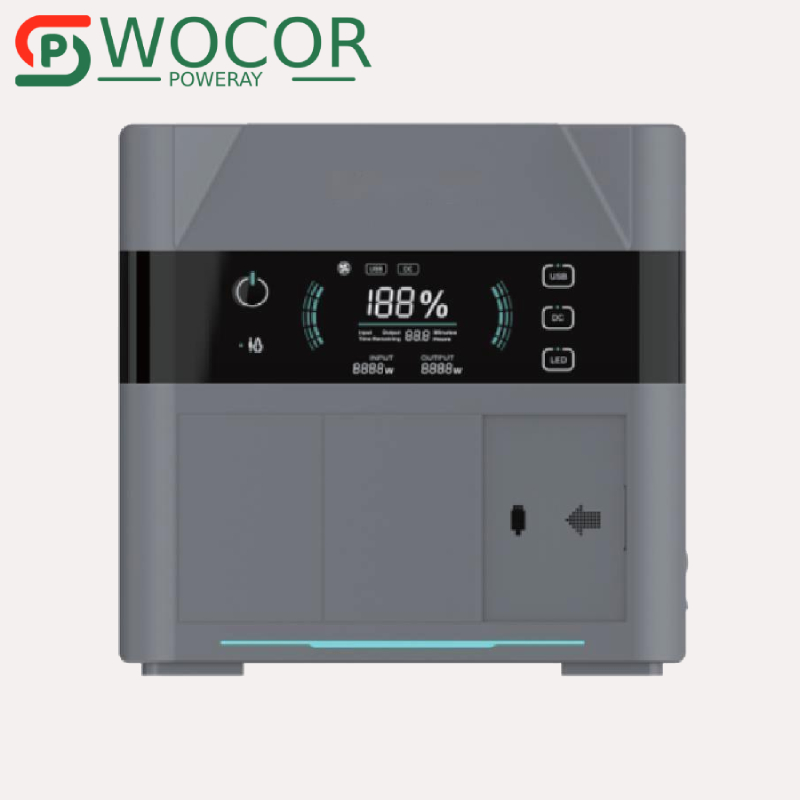

3KW Portable Power Station Residential Solar Energy System
  • 3KW Portable Power Station Residential Solar Energy System3KW Portable Power Station Residential Solar Energy System

3KW Portable Power Station Residential Solar Energy System

A home battery and backup system is a great way to provide clean, eco-friendly energy to your entire home this holiday season and throughout the year. And with modular systems, you can add storage batteries or solar panels as needed to keep up with changing energy needs. All WOCOR Poweray products include CDK-3000W 3KW Portable Power Station Residential Solar Energy System have been certified to meet regulatory, safety, and environmental standards that meet or exceed market demand. In addition, we are committed to strict quality control, customer service, and reliability that earn the trust of our customers.

Send Inquiry    PDF DownLoad

Product Description

CDK-3000W 3KW Portable Power Station Residential Solar Energy System excellent design, built-in AC 3000W output, DC12V output,USB C high power input and output,lighting function. CDK-3000W 3KW Portable Power Station Residential Solar Energy System up to 252Ah/12.8V (equivalent to 1007800mAh, 3.2V) 3225Wh battery power and support AC correction wave output. With a capacity of 3000Wh,CDK-3000W 3KW Portable Power Station Residential Solar Energy System can deliver 3000W of power (6000W surge power) using multiple output ports. Therefore, it can meet the simultaneous power supply needs of multiple mobile devices. CDK-3000W 3KW Portable Power Station Residential Solar Energy System  is the best companion and gear for outdoor activities and home powered emergency use.



Product information

Model name

CDK-3000W



LT3000

FP3000

Remark

AC Output

Output Voltage

100-120VAC、200-240VA

Output waveform

Pure sine wave

Rated Power

3000W

3000W



Power protection

6000W

6000W



Frequency Range

50Hz/60Hz±3Hz





Conversion efficiency

﹥92%

﹥92%

﹥92%

Shot circuit protection

Yes,short circuit removal, automatic release

Temperature protection

Temperature over 65℃protection

Temperature over 65℃protection



Operation method

Press the AC button

Press the AC button



DC output characteristics

Output ports

1*TYPE-C 100W, 2*USB-A 5V2.4A, 1*USB-A QC 3.0 18W

DC5521

12V/10A

12V/10A

12V/10A

Cigarette lighter output

12V/10A

12V/10A

12V/10A

Charging function

Voltage Range

Solar(18-24VDC), Adapter(19-24VDC)

Maximum charging power

800W

800W

800W

Solar charging

Built-in MPPT algorithm to improve solar charging efficiency

Charging time

Solar charging

8Hs

8Hs



Adapter Charging

5Hs

5Hs



Battery characteristics

Battery Type

18650-Lithum Battery

LiFePo Battery

Can OEM Battery

Total capacity

810800mAh

1007800mAh

Can be OEM

Battery power

3000Wh

3225Wh



Protective function

1.Short circuit protection 2.Over current protection 3.Over voltage protection 4.Under voltage protection 5.Overload protection 6.Over temperature protection

Running noise

<30dB

N.W(KG)

30KG

30KG



Product Dimension

384*270*357(L)mm

384*270*357(L)mm



G.W(KG)

32.5KG

32.5KG



Package Size

534*420*517mm

534*420*517mm



HS COD

8507600090

Certification

CE/FCC/ROHS/PSE/UN3.3/MSDS/Certification For Package



Product Feature And Application of the CDK-3000W

* Built-in high power density lithium- ion battery;

* Up to 252Ah/12.8V (equivalent to 1007800mAh, 3.2V) 3225Wh battery power;

* Support AC correction wave output;

* Up to 3000W AC continuous output, peak 6000W output;

* DC output, up to 12V/10A continuous output;

* The USB port supports QC18W fast charge output, suitable for smartphones, tablet

computers, etc

* The TYPEC port supports PD100W output, charging for Nintendo game consoles and

other devices.

* Protection includes: short circuit, overload, high temperature resistance, etc.
